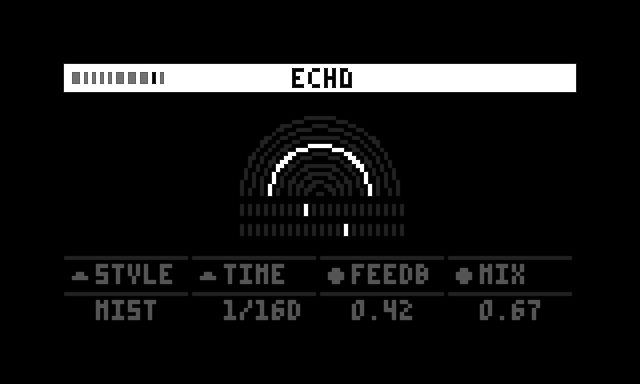

Echo
A delay effect with a selectable feedback path (K2); MIST feeds the delay buffer into a series of allpass filters for a reverb effect, while DUB saturates the signal. Echo time (K3) is synced to BPM. Feedback (E2) controls how much of the output is fed back into the delay input. Mix (E3) is really a control for the wet signal only; the dry signal always fully passes.
Controls
| Control | Function | Description |
|---|---|---|
| K2 | Echo style (mist/dub) | Selects the echo style |
| K3 | Echo time | Always synced to clock: 1/64, 1/32, 1/32D, 1/16, 5/64, 1/16D, 1/8, 5/32, 1/8D |
| E2 | Feedback (0-1) | Controls the amount of echo feedback |
| E3 | Mix (0-1) | Sets the wet/dry mix of the echo effect |
